FLAT WIRE BELT

Products

FLAT WIRE BELT

  • Details

Flat Wire Belt:

Stainless Steel Horseshoe Chain Mesh Belt is made of pivots and metal sheets. The two ends of the pivot are welded. For some specifications , the ends of the pivot can also be seamed. The width of the mesh belt is determined by the mesh belt specifications and the number of odd holes. Flat Wire Belt requires very little maintenance work, and if used properly, it has a long lifespan. The materials of Flat Wire Belts are carbon steel, galvanized steel, 304 and 316 stainless steel.

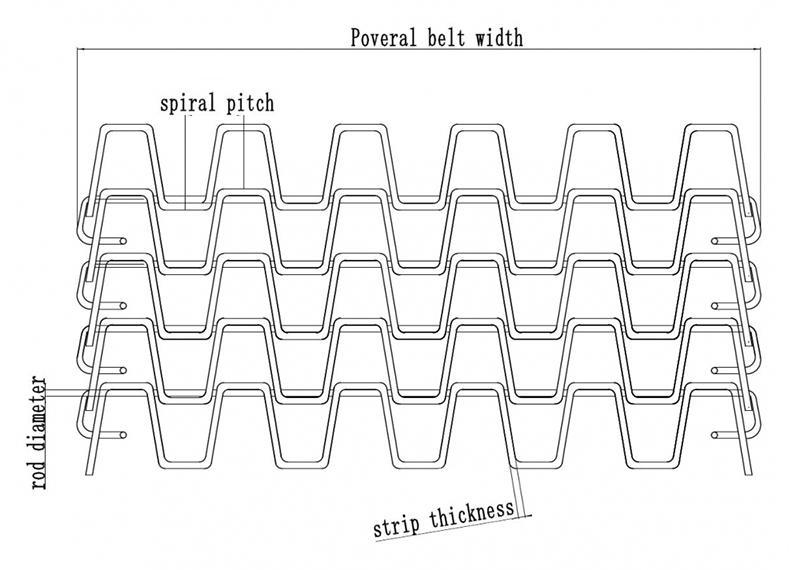

Washing Equipment Belt Parameter



Technical Details And Specification of Honeycomb Mesh Conveyor Belts

Product Name

Stainless Steel Flat Wire Conveyor Belts

Certificate

SGS

Technique

Flat Wire Conveyor Belts

Material

201,304,316L,310S,410 etc

Specification

l Rod diameter: 3 mm to 8mm.

l Spiral pitch: 2.4 mm to 100 mm.

l Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.

l Flat strip thickness:1.2mm,1.6mm,2mm

l Belt width: 200 mm to 6,000 mm.

Application

Drying,Cooling,Freezing,Pasteurizing,Blanching,Baking and Washing machine

Size

Max width can reach to 6000mm , belt length can be customized as your machine.

Other services

Special requirements can be customized
