Anti High Pressure Chain Plate Conveyor Belt

Products

Anti High Pressure Chain Plate Conveyor Belt

  • Details

Plate Chain Chain Link Conveyor Belt also called iron plate link conveyor belt with chain, is a very strong belt, made up by stainless steel iron plate and chains, driven by sprocket. The metal plate conveyor belt can supply larger contacting area and flat smooth surface for drying, sorting and conveying.Perforated plate conveyor belts are ideal drainage conveying systems.The perforation size range can be customized with the possibility to have various perforations to suit the product line.

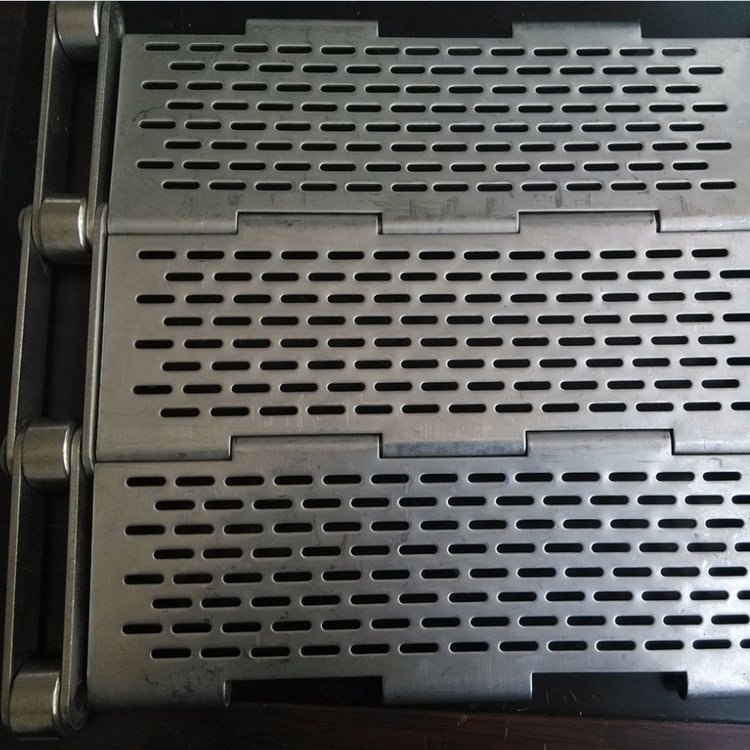

Plate Link Conveyor Belts

Plate Link Conveyor Belts

Plate Link Conveyor Belts

Advanteges of Chain Plate Link Conveyor Belt:

•   Stable operation.  The flat and smooth surface supplies large conveying surface and stable conveying.

Convenient installation. The installation of metal plate conveyor belt has simple structure, which can be installed and replaced conveniently and fast.

Suitable for medium and heavy load transportation such as press work, die-casting and forging. The metal plate conveyor belts have large conveying surface and they can self support in heavy duty applications.

Corrosion and rust resistance. Various anti-corrosive materials and surface treatments ensures the metal plate conveyor belts corrosion and rust resistance. It can be used in harsh environments and arduous conditions.

Durable and long service life. The material of metal plate conveyor belt is tough, which can be used in good condition for long service life.

•   Temperature resistance, which can be used in production processes with temperatures of -30ºC to +600ºC infood and other industries.

•   The baffles can be added onto the belt for convenient sorting and conveying.

•   The side guards can be added onto the belt to prevent products from spillage.

•   Chain link edge can ensure the smooth and high efficiency working.

•   Curved perforated plate conveyor belt is available to suit more applications and equipment.

Plate Link Conveyor Belt

Plate Link Conveyor Belt

Types of Chain Link Conveyor Belt:

1.The slat conveyor belt consists of hinged slats with holes

Plate Link Conveyor Belt


2.Chain Plate conveyor belt consists of hinged slats without perforations

Plate Link Conveyor Belt


3.Chain Plate conveyor belt with baffles can help to sort and convey products.

Plate Link Conveyor Belt

Available Edge:

1.Standard Chain Plate link conveyor belt

Plate Link Conveyor Belt

2.Chain Plate Conveyor Belt with side plate

Plate Link Conveyor Belt

Available Materials: carbon steel, SS 201, SS 304, SS 316.

Available Specifications:

Plate Link Conveyor Belt


A: Chain Pitch (mm)                          B: Rod Diameter (mm)

C: Plate Thickness (mm)                   D: Perforated Hole Dia (mm)

E: Total Width (mm)

Specifications of Plate Link Conveyor Belt

A:Chain Pitch

(mm)

B:Rod Diameter

(mm)

C:Plate Thickness

(mm)

25.4--125

5--20

1--4

Applications of Plate Chain Link Conveyor Belt:

● Cooling systems

Washing systems

● Waste treatment systems
● Blanching systems
● Sievingsystems
● Drying systems
● Sorting systems
● Bread production systems
● Product handling systems
● Transport systems
● Drainage systems
● Sorting systems
● Elevating systems
● De-Elevating systems

1.Plate Chain Link Conveyor Belt for Waste Treatment

Plate Link Conveyor Belt for Waste treatment

2.Plate Chain Link Conveyor Belt for Elevating

Plate Link Conveyor Belt for Elevating

3.Plate Chain Link Conveyor Belt for Transport

Plate Link Conveyor Belt for Transport

4.Plate Chain Link Conveyor Belt for Sorting

Plate Link Conveyor Belt for Sorting

NOTE: Custom specification is available if you can't find the suitable size.
