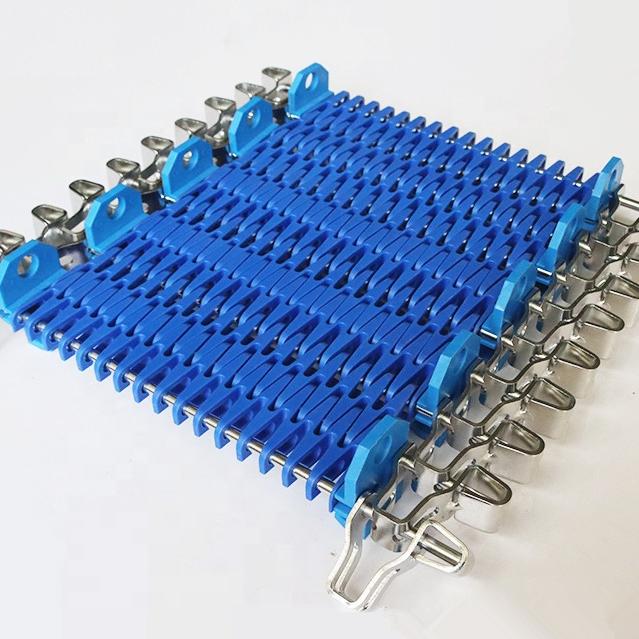

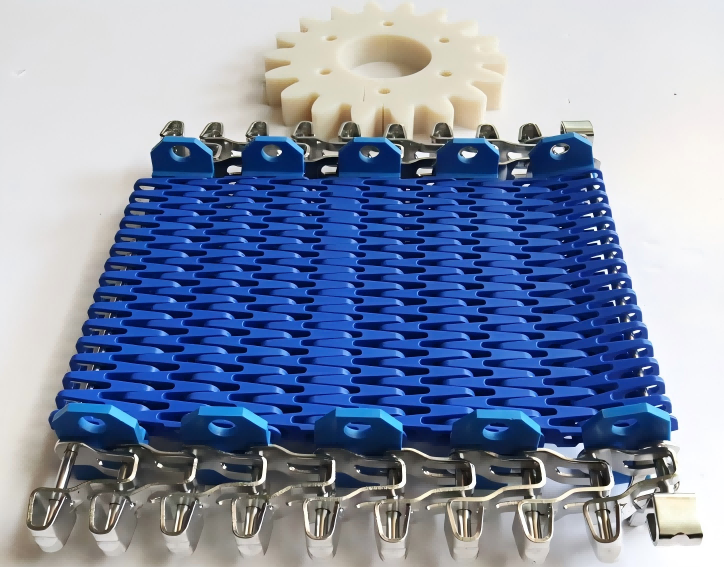

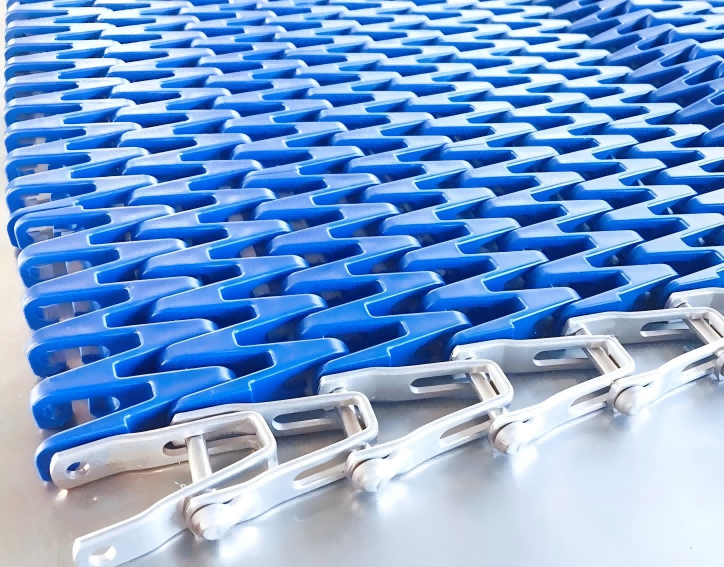

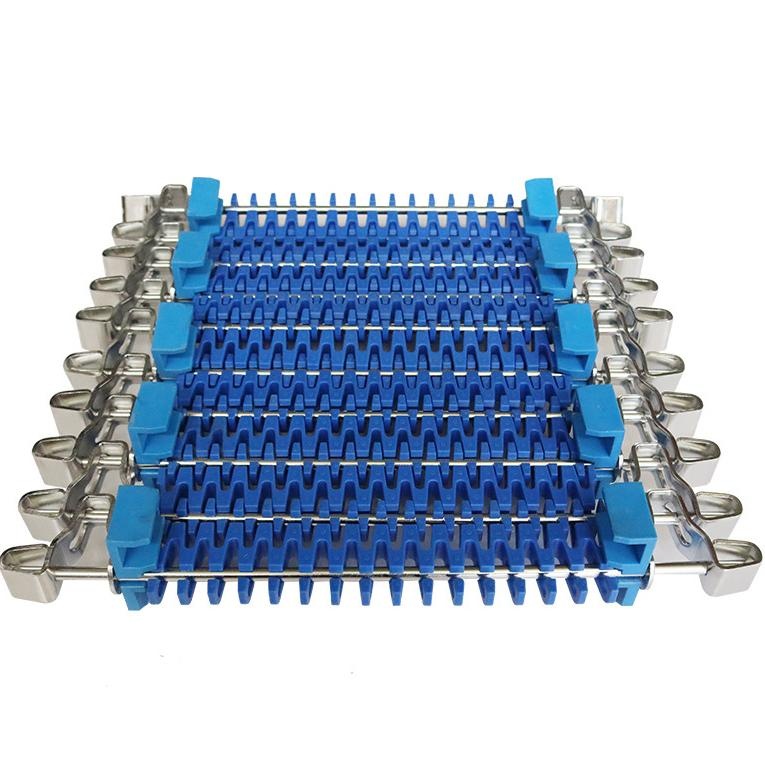

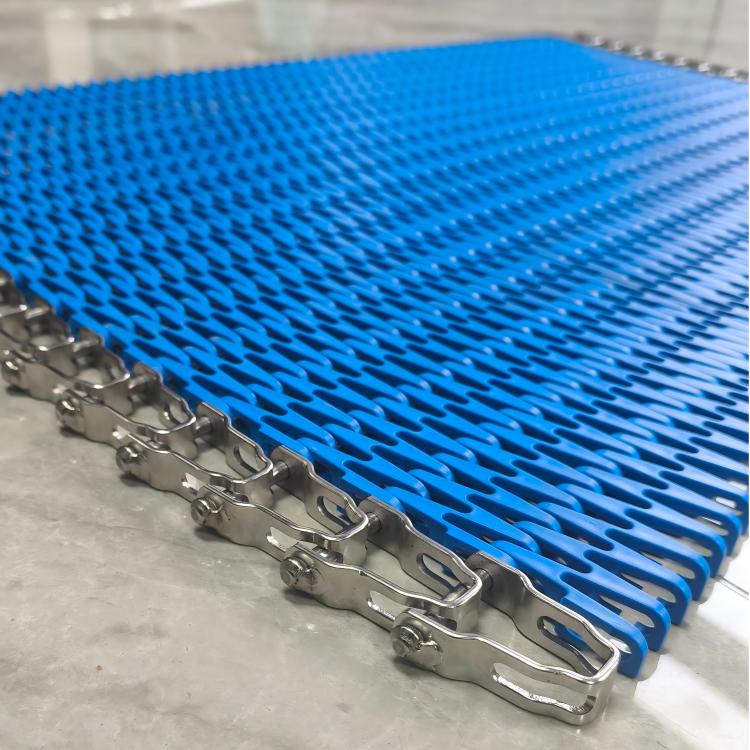

Hybrid spiral mesh belt is a widely used conveyor belting for a variety of spiral applications. It is a most common conveyor belt in food processing industry. Normally made of food grade stainless steel 304/316 and plastic modular, it consists of three parts - side U shape links, crossing rods and mesh overlay.

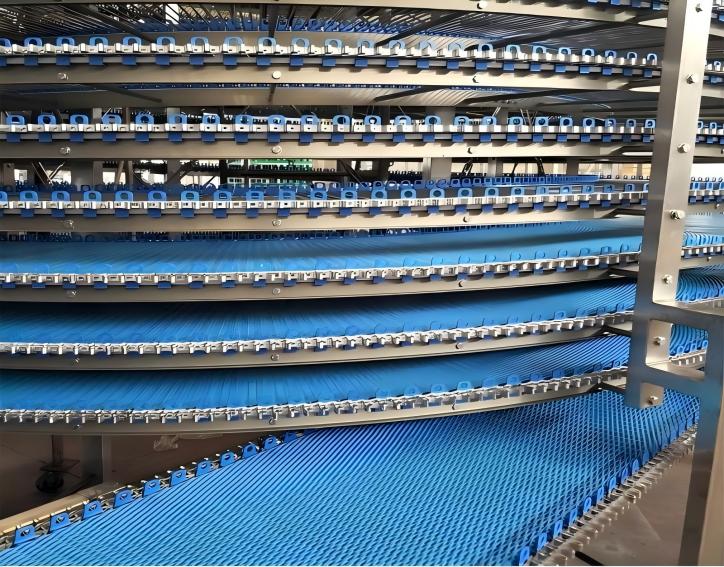

The spiral mesh belt has very good turning capabilities and can go 180°curves. The belt surface is smooth, tough, durable and not easy to get deformed, good air circulation and easy-cleanable capabilities. In this case, it can bear more heavier pressure and stress. The obvious performance of the spiral mesh belt is flex turning. That's why it's applied on spiral conveyor. The mesh belt is easy to maintain and dismantle, side guard available.

We supply complete stainless steel and plastic modular plastic conveyor belt and Smart Conveyor System Solutions, For each customer, we will supply best service and perfect solution according to their request.

RSSPB01 - Spiral Plastic Belt with Side Guards	RSSPB02 - Spiral Plastic Belt without Side Guards

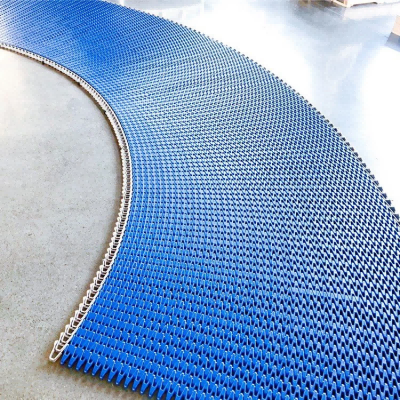

RSSPB03 - Spiral Plastic Belt Can Go Straight	RSSPB04 - Spiral Plastic Belt Can Turning 180° Curves

1. The plastic module is a polymer synthetic material that can come into direct contact with food and can work in an environment of -40 ° C to+60 ° C for a long time.

2. The whole belt is pickling processed except the plastic module, better hygiene condition to the food related product.

3. The driving system is the same as traditional metal mesh belts and does not require any changes.

4. Smaller plastic belt weight, lower requirement on the driving motor.

5. Easy maintenance: The plastic module is a rear assembly component, which is easy to install and disassemble. Compared with fully enclosed and non removable plastic mesh belts on the market, the broken plastic module can be removed and changed easily, no need to cut off and reconnect the belt, it saves installation time and after-sales costs.

6. The opening rate of the module metal spiral mesh belt is 36.8%, it's surface is smoother and flatter than that of the metal spiral mesh. So that, It is not easy to make pressure marks on the product during the production process, and it is not easily frozen together with the product.

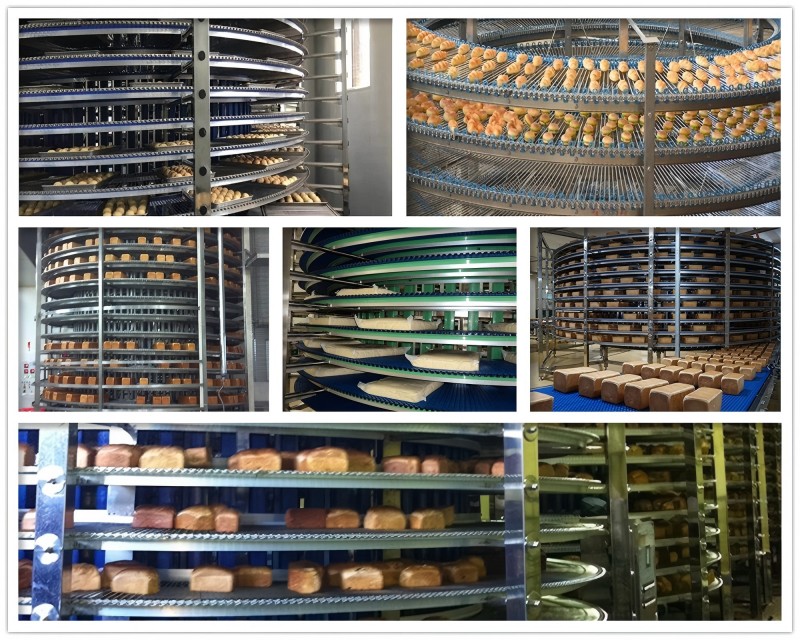

Plastic Spiral Belts are manufactured in compliance with the latest food safety requirements for food processing equipment. Whether used on spiral or straight conveyors, the Flexible Rod Belt is particularly suitable for cooking, cooling or freezing products such as bread, pastry, vegetables, potatoes, fish and meat. It also can be used for heat treatment, metal processing, food processing, leisure food production and ceramics production etc. Curved Conveyor Belts are suitable for a wide range of active food contact applications such as:
