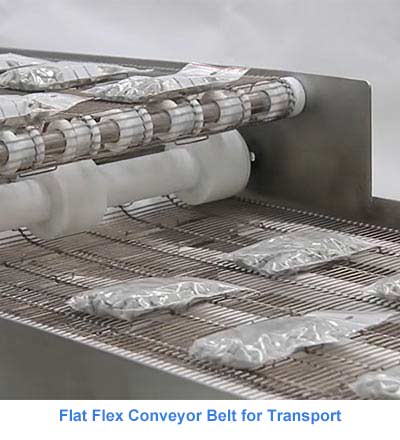

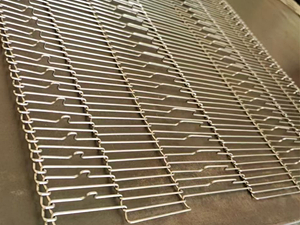

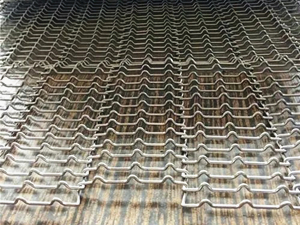

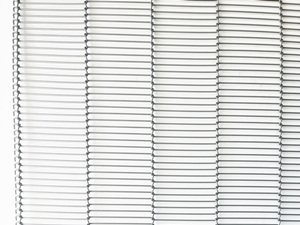

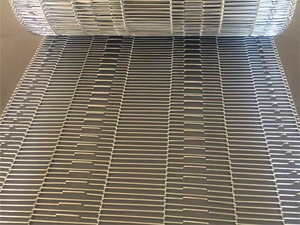

Flat Flex Conveyor Belts

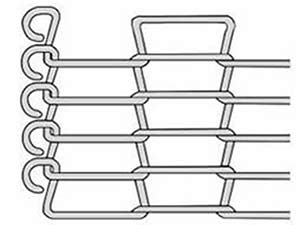

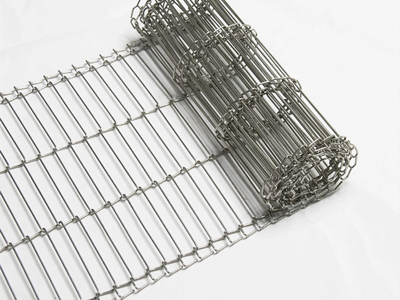

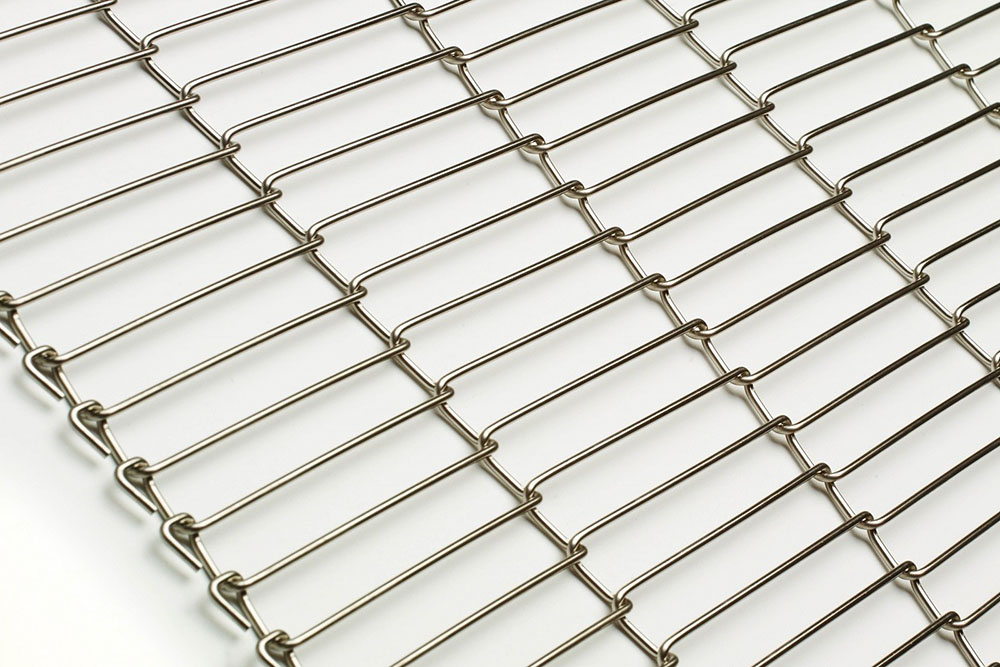

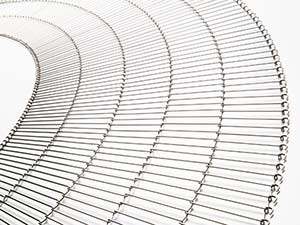

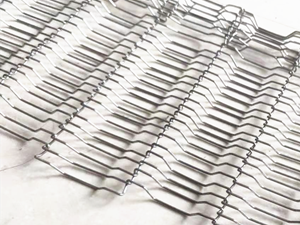

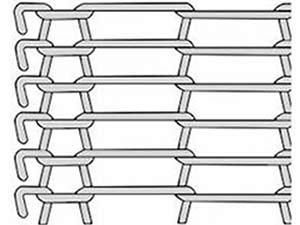

Flat Flex Conveyor Belts also called Enrober Conveyor Belts or Rod Network Belts, feature specially designed "Z-bend" joints in the wire mesh. Flat Flex Metal Conveyor Belt has lightweight and smooth structure for easy handling and quick installation, easy clean-up and minimum maintenance. Light weight & open construction makes this belt popular in baking and food processing.
Advantages
The unique features of Flat Wire Belts offer numerous benefits that increase productivity, help contain costs and improve your overall product quality, including:
① Large opening area up to 86% to promote air circulation. ② No-slip, positive driven for accurate tracking. ③ Smallest diameter end rolls and drive rolls. ④ Lightweight, easy to transport and install. ⑤ Easy to clean and save maintenance costs. ⑥ High-temperature resistance. ⑦ Durable and long service life. |
|
Applications

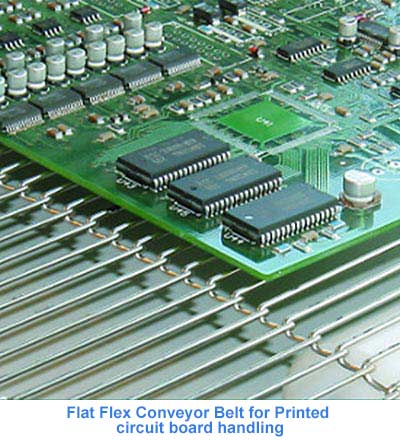

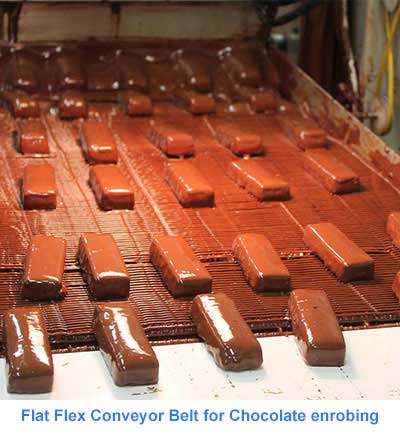

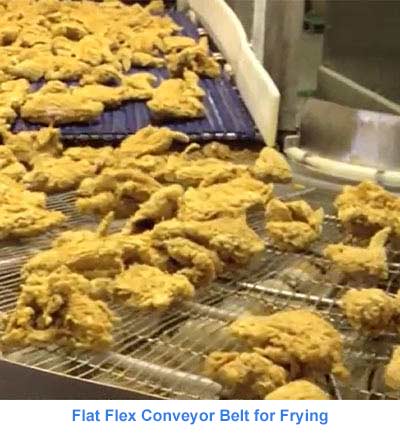

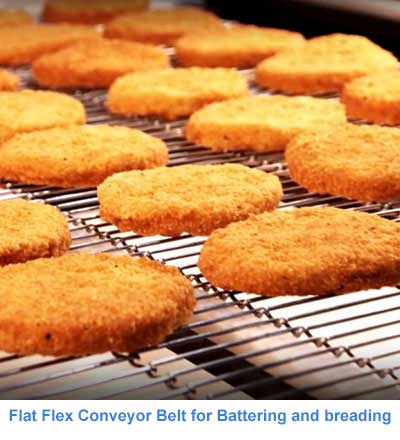

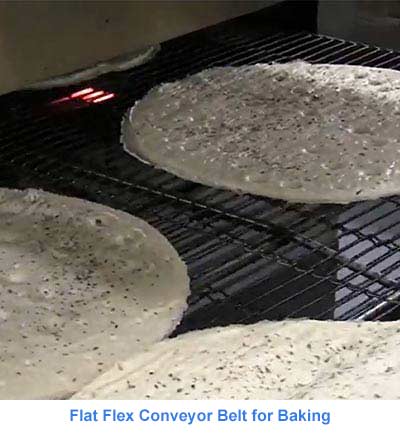

Flat Flex Wire Mesh Conveyor Belts are mainly used in for quick-frozen food, fried food, sugar machine, chocolate coating with a variety of bread and pastry food baking conveyor line. Below is a list of typical applications. If you have an application that is not listed below, contact us to see if Flat Flex belts are right for your needs.
① Transport ② Cooking ③ Heating ④ Drying ⑤ Cooling ⑥ Coating ⑦ Drainage ⑧ Freezing ⑨ Enrobing ⑩ Frying |
⑪ Baking ⑫ Dough Rolling ⑬ Breading ⑭ Shrink Wrapping ⑮ Sterilisation ⑯ Soldering ⑰ Turning ⑱ Crumbing ⑲ Preparation ⑳ Sieving |
Specifications
if you don't see the specification you require in the below data, please ask us.

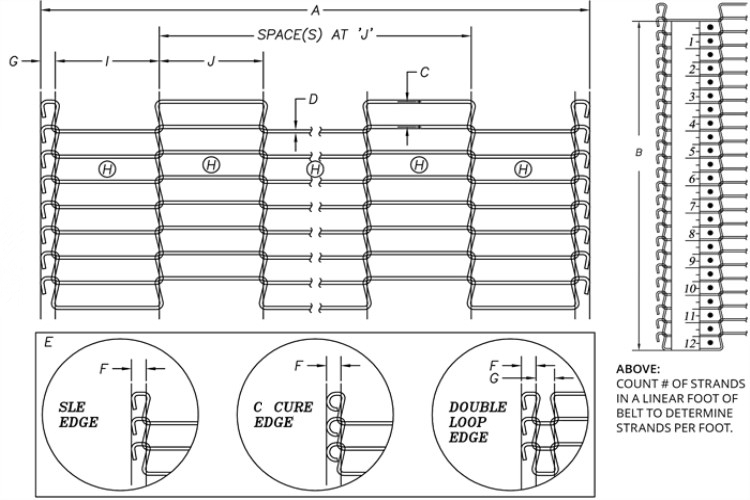

Specifications of Flat Flex Conveyor Belts |
|||||||||
Item |
Wire Diameter |
Actual Pitch |
Edge Loop Size |
Weight |
Typical Open Area |
Single Loop Edge |
Double Loop Edge |
C-Cure Edge |
|
FFCB-01 |
.035″ |
.167″ |
0.188″ |
0.26 lbs/sq.ft |
77% |
√ |
√ |
|
|
FFCB-02 |
.050″ |
.167″ |
0.188″ |
0.53 lbs/sq.ft |
67.5% |
√ |
|
|
|
FFCB-03 |
.035″ |
.222″ |
0.188″ |
0.2 lbs/sq.ft |
82.5% |
√ |
√ |
|
|
FFCB-04 |
.050″ |
.250″ |
0.313″ |
0.37 lbs/sq.ft |
77.5% |
√ |
√ |
|
|
FFCB-05 |
.050″ |
.289″ |
0.281″ |
0.33 lbs/sq.ft |
80% |
√ |
√ |
√ |
|
FFCB-06 |
.062″ |
.289″ |
0.281″ |
0.52 lbs/sq.ft |
75% |
√ |
|
√ |
|
FFCB-07 |
.072″ |
.375″ |
0.313″ |
0.58 lbs/sq.ft |
79% |
√ |
|
√ |
|
FFCB-08 |
.082″ |
.375″ |
0.313″ |
0.72 lbs/sq.ft |
75% |
√ |
|
√ |
|
FFCB-09 |
.050″ |
.453″ |
0.25″ |
0.24 lbs/sq.ft |
86% |
√ |
√ |
|
|
FFCB-010 |
.072″ |
.500″ |
0.281″ |
0.44 lbs/sq.ft |
82% |
√ |
|
√ |
|
FFCB-011 |
.092″ |
.500″ |
0.5″ |
0.73 lbs/sq.ft |
78% |
√ |
|
√ |
|
FFCB-012 |
.110″ |
.500″ |
0.512″ |
1.04 lbs/sq.ft |
72% |
√ |
|
√ |
|
FFCB-013 |
.092″ |
.774″ |
0.313″ |
0.52 lbs/sq.ft |
85% |
√ |
|
|
Materials Available
Flat Flex Belts are available in a wide variety of materials, the standard is 302 stainless steel, commonly used is 304 stainless steel material.
Other materials available include: 316 stainless steel, various carbon steel, and high temperature performance materials.
Material |
Maximum Wire Operating Temperature °C |
302 Stainless Steel |
450 |
Carbon Steel |
550 |
304 Stainless Steel |
750 |
316 Stainless Steel |
850 |
316L Stainless Steel |
850 |
Edge Loop Types

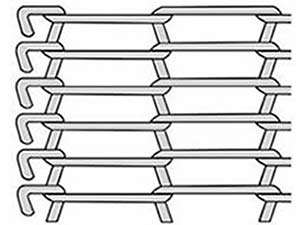

C Cure Edge | Single Loop Edge | Double Loop Edge |
• C Cure Edge: Single Loop Edge technology eliminates the possibility of the belt edge catching and tangling.
• Single Loop Edge: is the most common belt edge finish and are a default standard.
• Double Loop Edge: for more demanding applications. This option reinforces the outside edge of the belt.
Belt Types
|
||

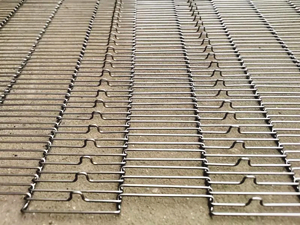

FFBT01-Straight Flat Flex Conveyor Belt |
FFBT02-Flex Turn Conveyor Belts |
FFBT03-Flat Flex Belt with Extra Strength |

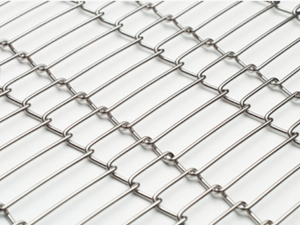

Straight Flat Flex Conveyor Belt is the simplest type conveyor belt for conveying light and medium weight products, also the commonly used belt. |
Flex Turn Conveyor Belts are available with corner angle from 30 degrees to 180 degrees owing to gradually increased pitches. |
Flat Flex Belt with Extra Strength increases the number of belt joints across the width of the belt, making the belt stronger and providing extra strength. |
|
|
|

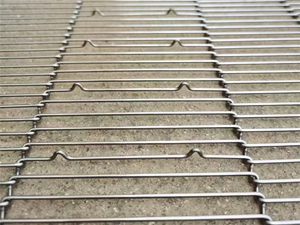

FFBT04-Flat Flex Conveyor Belt with Trough |
FFBT05-Chain Link Flat Flex Conveyor Belt |

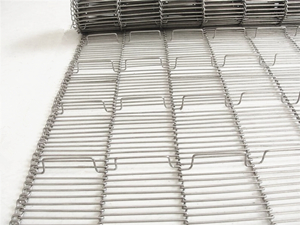

FFBT06-Flat Flex Conveyor Belt with Carriers |
This mesh belt can be used to tilt products up or down, keep products separated, minimize contact points or line up products. |

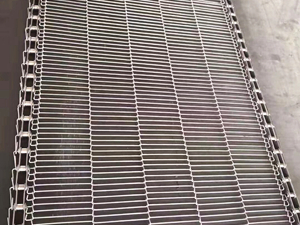

Installing chains on both sides of the conveyor belt can realize negative or positive transmission of the flat flex conveyor belt. |

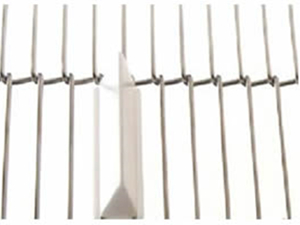

Flat Flex Conveyor Belt with carriers features thermoplastic polyurethane carriers for carrying and positioning large products. |
There are other types to choose from, and we can also customize according to your sample or picturer:
|
|
|
FFBT07 |
FFBT08 |
FFBT09 |
|
|
|
FFBT010 |
FFBT011 |
FFBT012 |
