Plate Link Conveyor Belts

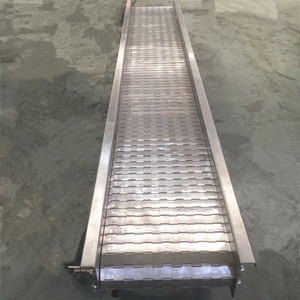

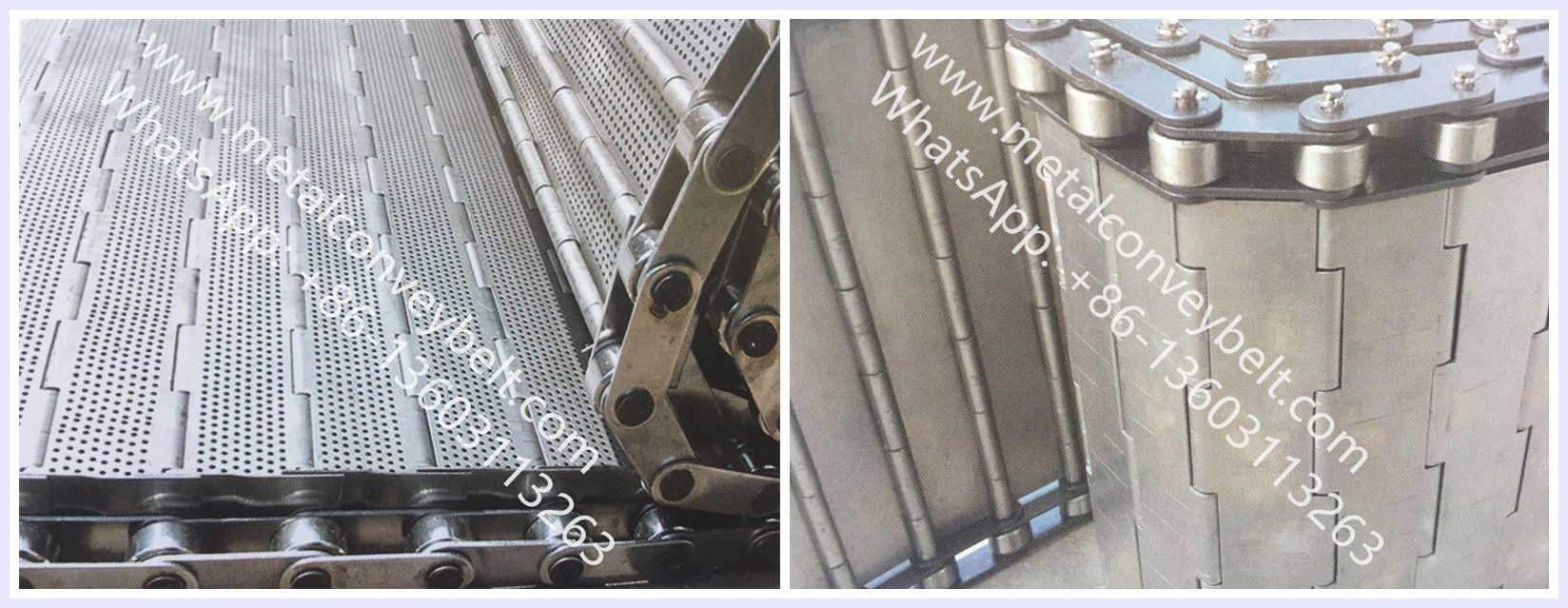

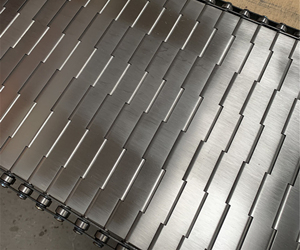

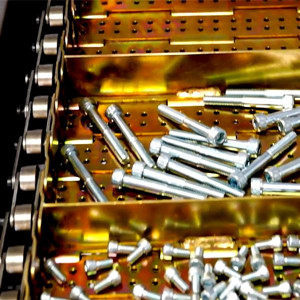

Plate link conveyor belts, also known as slat conveyor belts or chain plate conveyor belts, are a type of conveyor belt system that uses metal plates connected together in a chain-like pattern to transport materials. These belts are commonly used in food processing, pharmaceuticals, automotive manufacturing and packaging. The metal plates are typically made from stainless steel, carbon steel, or galvanized steel, which ensures durability and corrosion resistance. The plates are connected together using hinge pins or rods, allowing for flexibility and smooth movement along the conveyor system.
These belts are known for their high load capacity, smooth operation, and easy maintenance. They are ideal for transporting materials such as glass bottles, cans, boxes, and pallets. Plate link conveyor belts are also capable of handling inclines, declines, and curves, making them versatile for various manufacturing processes.
As a leading manufacturer of plate link conveyor belts, we offer a wide range of customization options, including various plate sizes, hinge designs, pitch, material and surface coatings, to meet customers specific application requirements.
Overall, plate link conveyor belts offer a reliable, durable and cost-efficient solution for moving materials in industrial applications.
Advantages
① Plate link belt is made of metal plate, which can load heavy duty products.
② The baffles can be added onto the belt for convenient sorting and conveying.
③ Can adding side guards to prevent products from spillage.
④ Curved perforated plate conveyor belt is available to suit more applications and equipment.
⑤ Suitable for arduous engineering processes such as press work, die-casting and forging.
⑥ Self- supporting structure for large widths without supports.
⑦ Smooth, flat, continuous surface for stable product transport.
⑧ Resistant to corrosion, wear and high temperatures(-30ºC to +600ºC), Ideal for harsh environments.
⑨ High durability and longevity.
⑩ Low maintenance requirements, easy to clean and install.
Applications
The unique design of the Metal Chain Plate conveyor belt, which consists of stainless steel or carbon steel plates linked together by cross rods, makes them ideal for applications that require strong and durable belts that can withstand heavy loads and high temperatures. Plate conveyor belts are commonly used in a variety of industries due to their durability and strength:

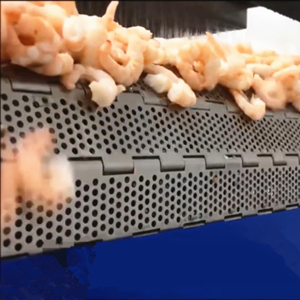

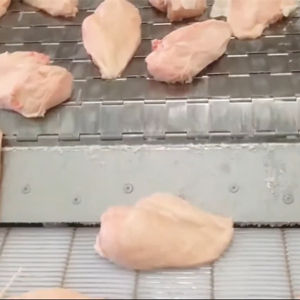

1. Food Industry: Plate link conveyor belts are widely used in the food prossingindustry for conveying items such as meat, poultry, seafood, fruits, and vegetables. The smooth surface of the plates prevents food products from getting stuck or damaged during transportation, making them ideal for food handling applications. In addition, they are ideal for applications that require high temperatures, such as baking or frying.

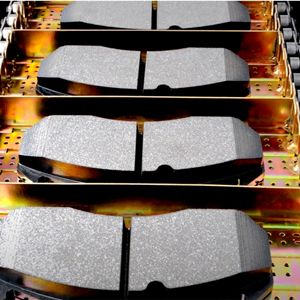

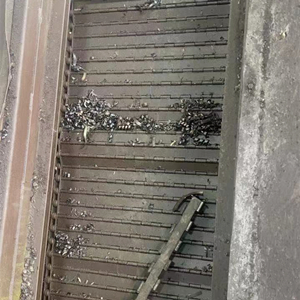

2. Automotive Industry: Plate link conveyor belts are used for conveying automotive parts during the automotive manufacturing processes. They can withstand heavy loads and are resistant to oil and grease, making them suitable for use in harsh industrial environments.
3. Packaging Industry: Plate link conveyor belts are commonly used in the packaging industry for conveying boxes, cartons, and other packaged goods. They provide a smooth and efficient conveying surface that helps to maximize production efficiency.
4. Mining Industry: Plate link conveyor belts are used in the mining industry for transporting heavy and bulky materials, such as coal, ore, and aggregate. The strong construction of the belts ensures that they can handle large loads without any risk of breakage or damage. In addition, They are able to withstand the harsh conditions of mining operations and provide reliable performance in demanding environments.

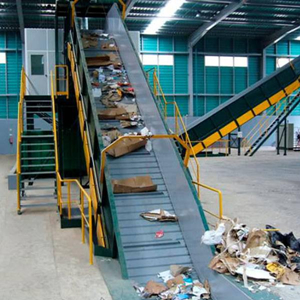

5. Recycling Industry: Plate link conveyor belts are used in the recycling industry for transporting materials such as plastic, paper, glass, and metal. They are able to handle a wide range of materials and are resistant to wear and tear, making them ideal for use in recycling facilities.
In addition, plate link conveyor belts are often used in high-temperature applications such as drying ovens, furnaces, and heat treatment processes. The heat-resistant properties of the stainless steel plates make them suitable for operating in extreme temperatures without deforming or losing their structural integrity.
Overall, Plate link conveyor belts are versatile and reliable conveying solutions for a wide range of applications where strong and durable belts are required for transporting materials safely and efficiently.
Materials Available
For the production of plate chain conveyor belts, we could choose these materials: carbon steel, stainless steel 201, 304, 316 and 310 or others, these materials have superior corrosive resistance to suit most applications at elevated temperature, choose the appropriate material according to the operating temperature and use environment.
· Carbon steel metal plate conveyor belt.
· Stainless steel 201 plate chain conveyor belt.
· Stainless steel 304 plate chain conveyor belt.
· Stainless steel 316 plate chain conveyor belt.
· Stainless steel 310 plate chain conveyor belt.
Material
Maximum Wire Operating Temperature °C
Feature
Carbon Steel
550
Good wearability
Stainless Steel 201
650
Ordinary stainless steel
Stainless Steel 304
750
Often used
Stainless Steel 316
850
Corrosion-resistant
Stainless Steel 310
1150
Working steadily in high temperature
Specifications
The optional range of data for metal chain conveyor belt is as follows, and common specifications can be found in the following table:
- Material: carbon steel, SS 201, SS 304, SS 316, SS310.
- Plate thickness: 0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm.
- Connection rod diameter: 5 mm, 6 mm, 8 mm, 10 mm, 12 mm.
- Rod pitch: 19.05 mm, 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 76.2 mm.
- Chain plate width: 200 mm to 4,000 mm.
- Belt length: according to customer's requirement .
- Surface treatment: hot dipped galvanized, blacking
 |

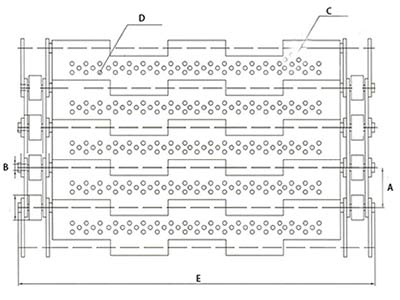

A: Chain Pitch
B: Rod Diameter
C: Plate Thickness
D: Perforated Hole Dia
E: Total Width
|
|
Common Specifications of Plate Link Conveyor Belts |
|||
|
Item |
Chain Pitch |
Rod Diameter |
Plate Thickness |
|
PLCB-01 |
25.4 |
5 |
1.0 |
|
PLCB-02 |
25.4 |
6 |
1.0 |
|
PLCB-03 |
25.4 |
6 |
1.5 |
|
PLCB-04 |
31.75 |
6 |
1.0 |
|
PLCB-05 |
31.75 |
6 |
1.5 |
|
PLCB-06 |
31.75 |
8 |
2.0 |
|
PLCB-07 |
38.1 |
6 |
1.0 |
|
PLCB-08 |
38.1 |
6 |
1.5 |
|
PLCB-09 |
38.1 |
8 |
1.0 |
|
PLCB-10 |
38.1 |
8 |
1.5 |
|
PLCB-11 |
38.1 |
8 |
2.0 |
|
PLCB-12 |
50.8 |
6 |
1.2 |
|
PLCB-13 |
50.8 |
8 |
1.0 |
|
PLCB-14 |
50.8 |
8 |
1.5 |
|
PLCB-15 |
50.8 |
10 |
2.0 |
|
PLCB-16 |
50.8 |
10 |
3.0 |
|
PLCB-17 |
63.5 |
10 |
2.0 |
|
PLCB-18 |
63.5 |
10 |
1.5 |
|
PLCB-19 |
63.5 |
10 |
3.0 |
|
PLCB-20 |
80 |
8 |
1.5 |
|
PLCB-21 |
80 |
8 |
2.0 |
|
PLCB-22 |
80 |
10 |
2.0 |
|
PLCB-23 |
80 |
10 |
2.5 |
|
PLCB-24 |
100 |
10 |
1.5 |
|
PLCB-25 |
100 |
10 |
2.0 |
|
PLCB-26 |
100 |
14 |
2.0 |
|
PLCB-27 |
100 |
14 |
3.0 |
|
PLCB-28 |
101.6 |
10 |
4.0 |
|
PLCB-29 |
106.6 |
14 |
4.0 |
|
PLCB-30 |
125 |
20 |
3.0 |
*Custom specification is available if you can't find the suitable size.
Belt Types
 |
 |
|

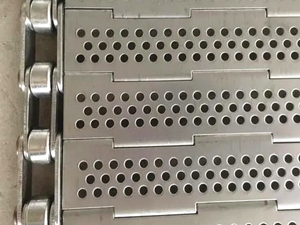

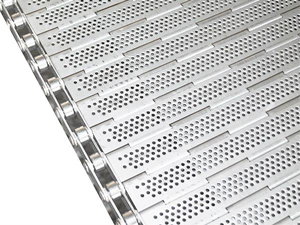

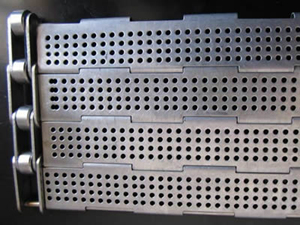

PCB01-Plate Link Conveyor Belt with perforations |

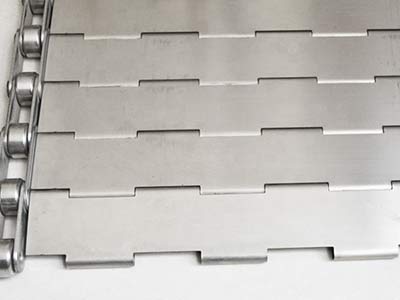

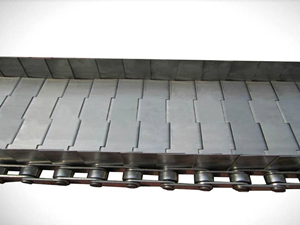

PCB02-Plate Link Conveyor Belt without perforations |
|
The holes supply excellent heat dissipation performance for conveying products. The holes can be made into different patterns and sizes. |

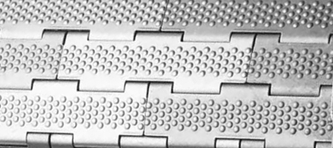

---------Flat plat conveyor belt, also called perforated non-perforated conveyor belt, which is the simple structure of metal plates. ----- |
|
 |
 |
|

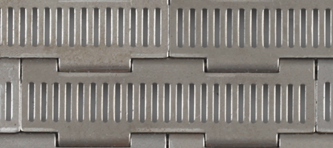

PCB03-Convex belt |

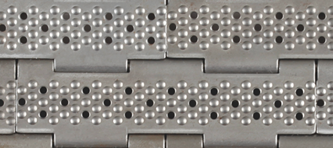

PCB04-Convex belt with perforations |
PCB05-Mesh belt |
|
Raised shapes avoid complete contact of the product with the belt surface, supplies anti-slip performance. |
This type of belt is suitable for that when small amount of liquid needs to be drained during transportation. |
This type of belt is suitable for when significant amount of liquid needs to be drained during transportation. |
Perforations Patterns
Perforated plate conveyor belt can be made into different patterns, you can choose the suitable pattern to suit your application and detailed using conditions. The aperture of perforated holes can be customized according to your requirements.
 |
 |
 |

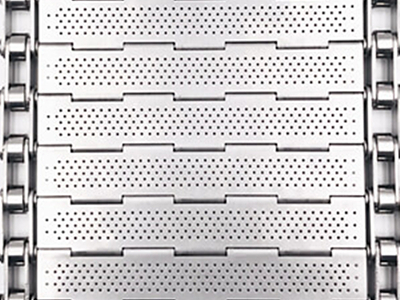

| PCBH01-Staggered round hole perforated metal plate conveyor belt | PCBH02-Straight round hole perforated metal plate conveyor belt |

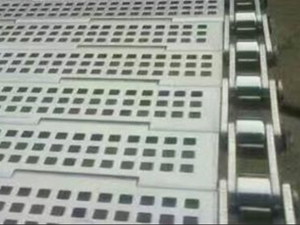

PCBH03-Square holes perforated metal plate conveyor belt |
 |
 |
 |
|

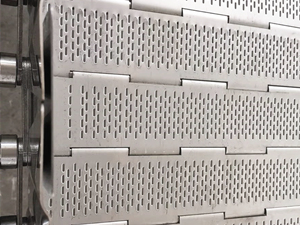

PCBH04-Vertical strip hole perforated metal plate conveyor belt |

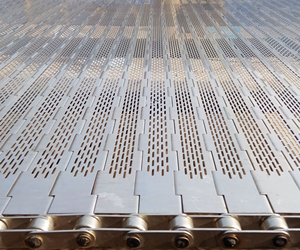

PCBH05-Horizontal strip hole perforated metal plate conveyor belt |

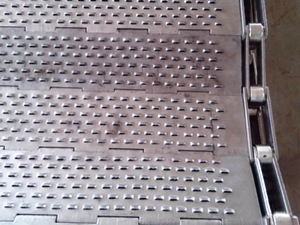

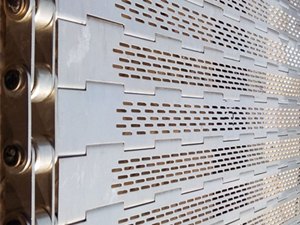

PCBH06-Slot hole perforated metal plate conveyor belt |
Customization
The side plates and the transverse baffles are optional accessory according to your needs:
Standard belt
Belt with side plates

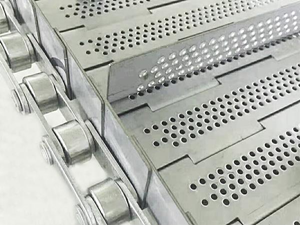

Belt with transverse baffle plate
Belt without side plates and transverse baffle plate. ----------------------------------
The side plates can be made into various designs and height to protect conveying products from falling down during elevation or decline.
The transverse baffles can make the sorting and conveying easy and convenient.
Transportation Forms
Metal chain plate conveyor belt can be made into direct transmission types, climbing types and turning types.
direct transmission types

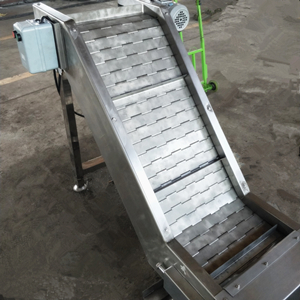

climbing types

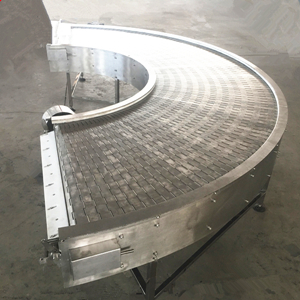

turning types
