Eye Link Conveyor Belt, mainly used for food and heating processing machine and materials are Stainless Steel 304/310S/314S,can bear high temperature.

Product details:
  • Material: SS 304, SS 316.
  • Wire diameter: 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
  • Spiral pitch: 2.4 mm to 100 mm.
  • Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.
  • Chain pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.
  • Rod diameter: 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm.
  • Belt width: 200 mm to 6,000 mm.

Features:
  • Excellent air and fluid drainage.
  • Custom specification for special applications.
  • Numerous configuration options.
  • Cross flights and side guards provided.
  • Reduce downtime and maintenance.
  • Heavy-duty conveying requirements.
  • Flat carrying surface.
  • Multiple drive options.
  • Multiple spacers options.
  • Variable wire spacing.




Product Show

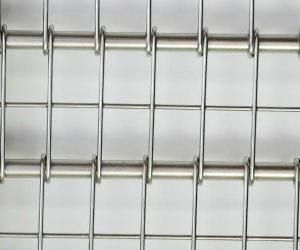

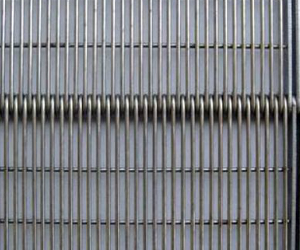

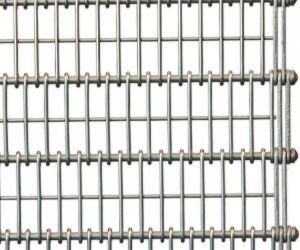

EYE LINK CONVEYOR BELT
EYE LINK CONVEYOR BELT
