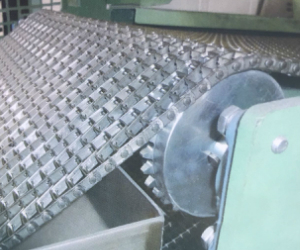

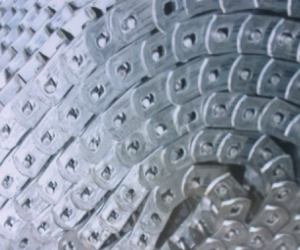

Flat Wire Conveyor Belt, also named horseshoe belt, honeycomb belt, it is widely used in automatic line transportation in light industrial machinery, sterilization machine, silk printing and dyeing, food, power generation, pharmaceutical, garment processing and other industries.

Specifications:
  • Materials: Carbon steel, SS 201, SS 304, SS 316.
  • Cross rod: 11 or 12 gauge.
  • Rod diameter: 3 mm, 4 mm, 5 mm, 6 mm, 8 mm.
  • Spiral pitch: 12.7 mm to 40 mm.
  • Rod pitch: 12.7 mm, 25.4 mm, 38.1 mm, 50.8 mm.
  • Flat strip: 9.52 mm wide × 1.17 mm thick, round edge.
  • Belt width: 200 mm to 4,000 mm.
  • Edge style: clinched edge or welded edge.

Features:
  • Very large open area.
  • Straight-running belt.
  • flat carrying surface.
  • Easy to clean and to install.
  • Wide range of aperture configurations.
  • Strong edge reduces snagging or catching on conveyor protrusions.




Product Show
FLAT WIRE CONVEYOR BELT
FLAT WIRE CONVEYOR BELT
