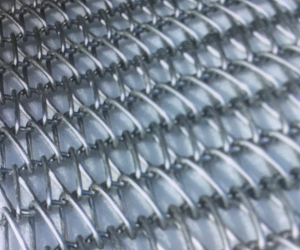

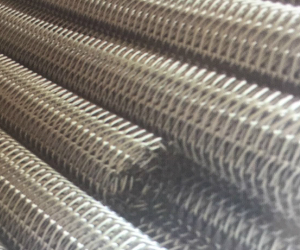

Drive Balanced Weave Wire Mesh Belt

Drive Balanced Weave Wire Mesh Belt is mainly made of Stainless Steel or other grade metal wire. It can transport goods under heavy loads for long distance through quenching liquids, cooking oils or other slippery conditions. Balanced weave belt is made up by crimped rod or straight rod and left spiral or right spiral wire by the balanced weave method.

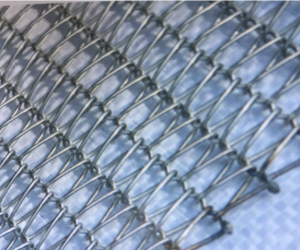

Crimped rod type: focused weaving metal wire mesh's advantages, because the deeper of the crimped rod, every of the spiral wire gets correct postion, so this type can reduce the conveyor belts's variant and extension.

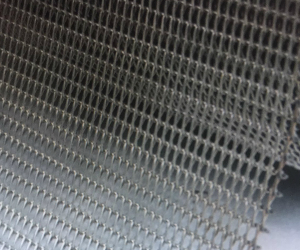

Straight rod type: made up by straight rod, One-side Rotation spiral wire. The holes of this type belt are very small and well-distributed and it guarantees smooth belt running. This style is perfect for small and heavy products.

Specifications:

Ÿ Material: High Carbon Steel, Galvanized, SS304, SS316, SS314 etc.

Ÿ Pitch of cross rods: 6mm to 20mm.

Ÿ Pitch of spiral wires: 6mm to 20mm.

Ÿ Diameter of cross rods: 1mm to 4mm.

Ÿ Diameter of spiral wires: 1mm to 3mm.

Applications:

Ÿ Vegetable cleaning machinery, sorting, sterilization, quick freezing, Biscuit oven, cooler, fuel injector, salt spreader, etc.

Ÿ Industrial Product Processing, Transfer and Packaging Belts

Ÿ Annealing Oven Conveyor Belts

Ÿ Cooker and Fryer Conveyor Belts

Ÿ Drying and Cooling Conveyor Belts
