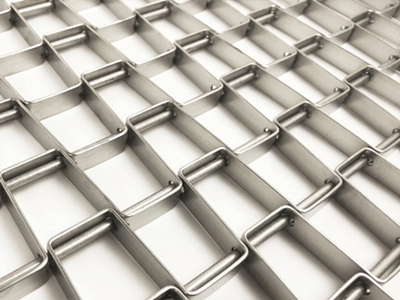

Flat Wire Conveyor Belts

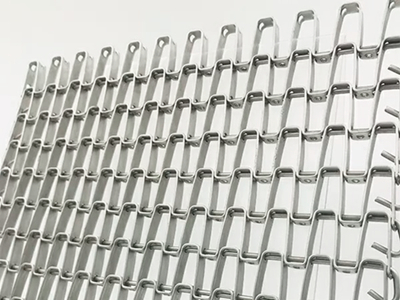

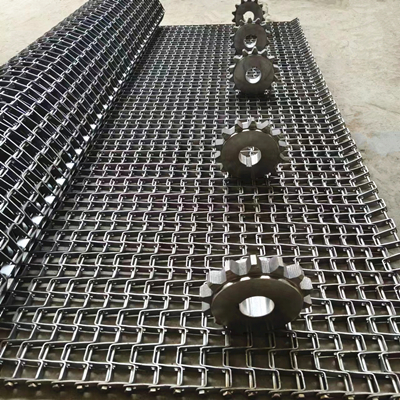

Flat wire conveyor belt also named honeycomb conveyor belt, horseshoe chain mesh belt, it is a type of mesh conveyor belt with a flat surface, made from flat metal sheets that are connected together with pivot, the two ends of the pivot are welded. As a leading manufacturer of Honeycomb Belting, we provide high-quality, durable, high-temperature resistant, overloading, and enduring harsh environment conveyor belts, that are ideal for a variety of industries such as food processing, automotive manufacturing and electronics assembly. Flat Wire Belt requires very little maintenance work, and if used properly, it has a long lifespan.
 |
 |

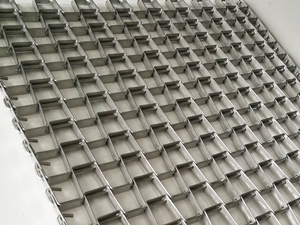

Advantages

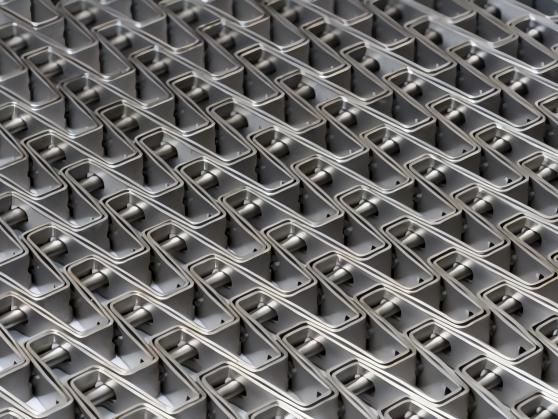

① Flat surface, making them ideal for a wide variety of product types and sizes to be conveyed without skewing or slipping.
② Durable and long-lasting, withstanding high temperatures and harsh environments without sagging or stretching.
③ Easy to clean and maintain, reducing downtime and ensuring proper hygiene for food and pharmaceutical applications.
④ Open mesh design allows for excellent airflow and drainage.
⑤ Excellent strength and load-carrying capacity, allowing them to convey heavy loads efficiently and reliably.
⑥ Customized with different materials, coatings and edges to meet specific requirements: resistance to abrasion, chemicals or heat.
⑦ Smooth surface minimizes product damage and reduces noise levels during operation.

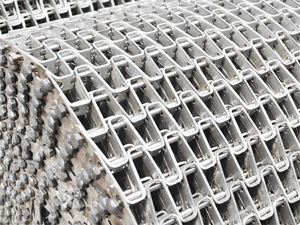

Applications

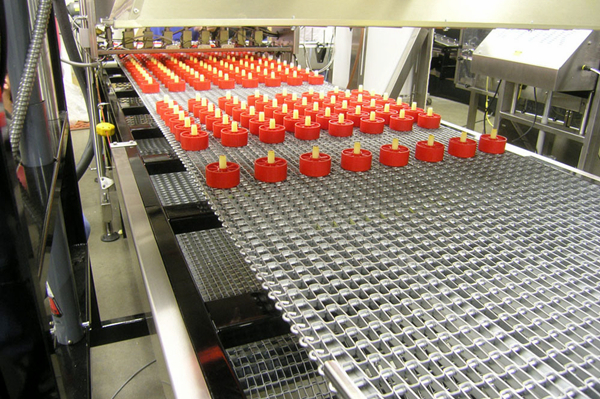

The applications of flat wire conveyor belting include conveying heavy or bulky materials, handling hot or sharp parts, transporting fragile products, cooling or drying processes, food processing, baking. It can also be applied in the chemical industry, agricultural farming and harvesting. Specifically used in the following systems:
|
● Packaging systems ● Sorting systems ● Drying systems ● Product handling systems ● Sieving systems ● Bread production systems ● Sterilization systems ● Waste handling systems ● Annealing systems |
|
Applicable mechanical equipment as below: ① Oven equipment ② Freezing equipment ③ Dehydrating equipment ④ Sterilizing equipment ⑤ Drying equipment ⑥ Filtering equipment ⑦ Cleaning equipment ⑧ Cooling equipment ⑨ Quenching tank ⑩ Package equipment ⑪ Sorting equipment |
 |
Specifications
 |

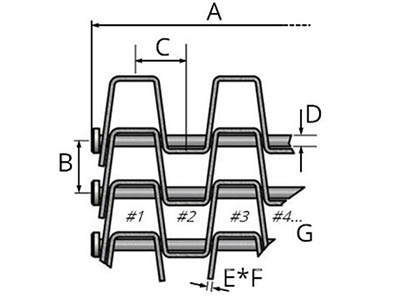

----A: Overall Width ----B: Cross Rod Pitch C: Nominal Lateral Pitch D: Cross Rod Diameter E: Height of flat strip material F: Thickness of flat strip material G: Number of Apertures Across Width |
The description of flat wire mesh conveyor belt is followed by its load-bearing capacity. Usually, there are standard duty belts and heavy duty flat wire belts available for customers to choose from according to different needs. The standard load type belt is sufficient to meet most applications, while the heavy-duty type belt is very suitable for conveying heavy-duty products and some more harsh conditions.
|
Styles |
Types |
Mesh size |
Belt width |
Cross rod diameter |
Flat strip |
Tension (max) |
Approx. weight |
|
Standard duty & clinched edge |
FWSC-1 |
1" × 1" |
4.5" to 240" |
0.105" |
3/8" × .046" |
480 lbs./ft |
1.85 lbs./square feet |
|
FWSC-2 |
½" × 1" |
4.125" to 240" |
0.105" |
3/8" × .046" |
660 lbs./ft |
2.20 lbs./square feet |
|
|
FWSC-3 |
½" × 1" |
4.125" to 240" |
0.105" |
3/8" × .046" |
660 lbs./ft |
2.50 lbs./square feet |
|
|
FWSC-4 |
¾" × 1" |
4.5" to 240" |
0.12" |
3/8" × .046" |
550 lbs./ft |
2.00 lbs./square feet |
|
|
Standard duty & welded edge |
FWSW-1 |
1" × 1" |
3" to 240" |
0.105" |
3/8" × .046" |
480 lbs./ft |
1.85 lbs./square feet |
|
FWSW-2 |
½" × 1" |
3.25" to 240" |
0.105" |
3/8" × .046" |
660 lbs./ft |
2.20 lbs./square feet |
|
|
FWSW-3 |
½" × ½" |
3" to 240" |
0.105" |
3/8" × .046" |
750 lbs./ft |
3.25 lbs./square feet |
|
|
FWSW-4 |
½" × 1" |
3.25" to 240" |
0.12" |
3/8" × .046" |
660 lbs./ft |
2.50 lbs./square feet |
|
|
Heavy duty & clinched edge |
FWHC-1 |
1" × 1" |
10" to 192" |
0.192" |
1/2" × .062" |
1350 lbs./ft |
3.55 lbs./square feet |
|
FWHC-2 |
½" × 1" |
10" to 192" |
0.192" |
1/2" × .062" |
1750 lbs./ft |
3.55 lbs./square feet |
Materials Available
Flat wire belting are manufactured by three common materials: carbon steel, stainless steel 304 and stainless steel 316.
|
Material |
Maximum Wire Operating Temperature °C |
|
Carbon Steel |
550 |
|
304 Stainless Steel |
750 |
|
316 Stainless Steel |
850 |

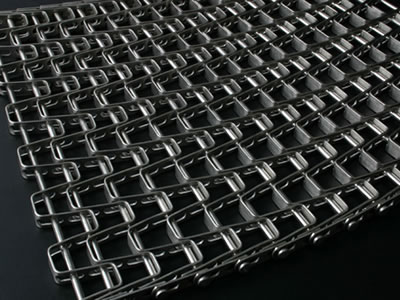

Edge Types
The flat wire mesh belts are available in clinched edge, welded edge, with nut edge and chain edge as shown below:
 |
 |
 |
 |
|

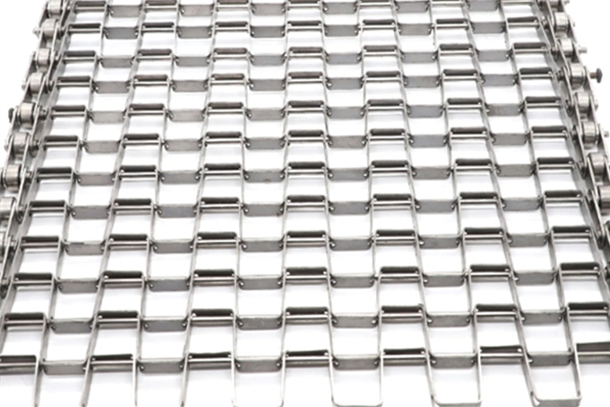

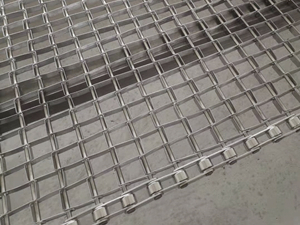

FWCB01- clinged edge flat wire mesh belt |

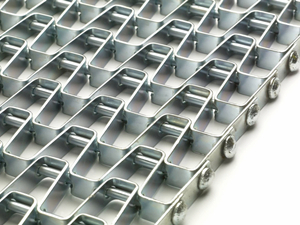

FWCB02- welded edge flat wire mesh belt |

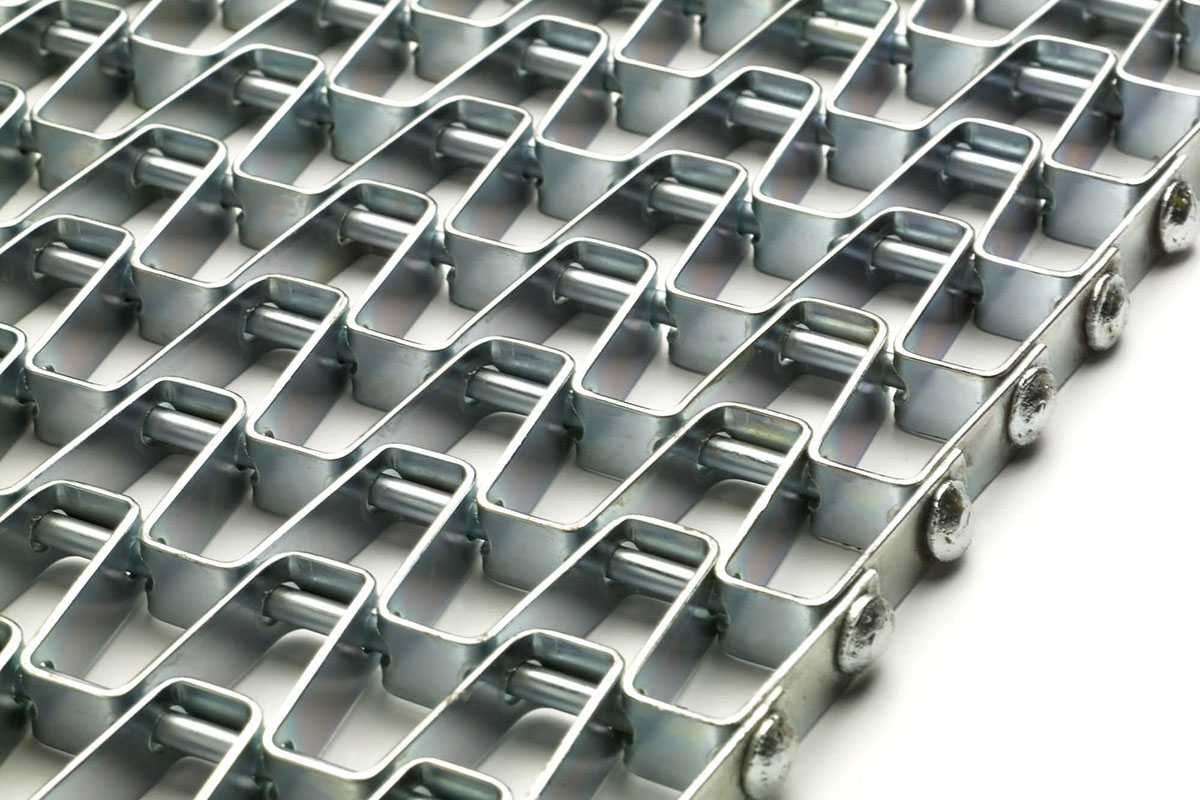

FWCB03- Flat wire mesh belt with nut edge |

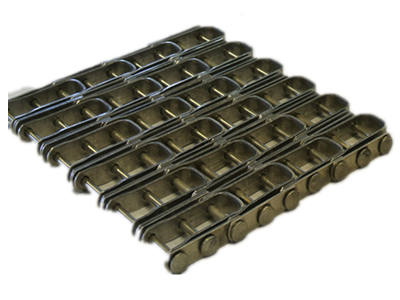

FWCB04- chain edge flat wire mesh belt |
