Flexible Rod Conveyor Belts


Flexible Rod Conveyor Belts

  • Details

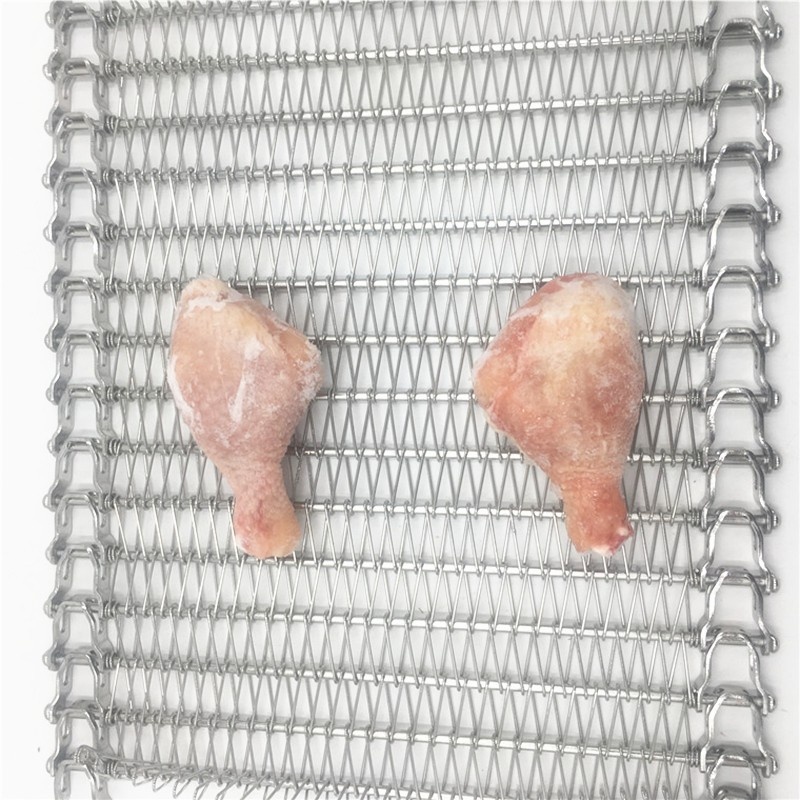

Spiral Grid Belt also named Flexible Rod Conveyor Belt, it is an innovative wire mesh conveyor belt, specially designed for use in spiral conveyors. This unique spiral conveyor belt is engineered with precision using premium stainless steel wires, ensuring excellent durability and resistance to corrosion. The interlocking mesh pattern creates a strong and stable surface, making it an ideal choice for conveying various products. Spiral Wire Belts usually used for frozen food industrial, the surface is smooth for quick and easy cleaning, also can bear heavy pressure and tension, good performance can reach 360 degree flat turning.

Technical Details And Specification of Stainless Steel Spiral Grid Belts:

Product Name

Stainless Steel Spiral Grid Conveyor Belts




Spiral Grid Conveyor Belts


201,304,316L,310S,410 etc


· Chain pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.

· Rod diameter: 4mm,5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm.

· Wire diameter: 1.2mm,1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.

· Spiral pitch: 2.4 mm to 100 mm.

· Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.

· Belt width: 200 mm to 6,000 mm.


Drying, Cooling, Freezing, Pasteurizing, Blanching, Baking and Washing machine


Max width can reach to 6000mm , belt length can be customized as your machine.

Other services

Special requirements can be customized

Spiral Conveyor Belts are manufacturedin compliance with the latest food safety requirements for food processing equipment. It can be used for heat treatment, metal processing, food processing, leisure food production and ceramics production etc. Curved Conveyor Belts are suitable for a wide range of active food contact applications such as:
  • Baking
  • Frying
  • Drying
  • Cooling
  • Freezing
  • Pasteurizing

Flexible Rod Belts are also suitable for use in spiral freezer and tunnel ovens, quenching furnaces, cleaning machines, frying machines, quick-freezing machines and other dynamic temperature equipment.Solutions for the most complex situations. With a range of combinations of pitch, wire diameter, mesh length and side finishes, Multi-tier Spiral Conveyor Belts can be integrated in practically any production process.

Spiral Tower Grid Belt is a highly reliable and efficient solution for belt conveyor machines. As a leading stainless steel mesh belt conveyor manufacturer, we pride ourselves on delivering exceptional conveyor solutions that meet the evolving needs of industries worldwide. Whether you require high durability, customization options, or seamless operations, our Flexible Rod Wire Mesh Spiral Conveyor Belts are the perfect choice. For all of your conveyor belt installation, commissioning, condition monitoring, and maintenance, Contact us today to discuss your specific requirements and discover how our Spiral Wire Belt can enhance your belt conveyor system.

For now, wire mesh conveyor belt is mainly divided into major categories: Chain Driven Mesh Belt is widely used in spiral freezer machines; Spiral Mesh Belts are suitable for the conveying of small and high density materials; Eye Link Belt is suited to convey heavy loads and unstable or fragile products that require good support from the conveyor belt; Balanced Weave Belt is extensively applied for conveying parts of metallurgy, food processing, pharmacy, glass print, special equipments; Flat flex belt is mainly used in for quick-frozen food, fried food, sugar machine, chocolate coating with a variety of bread and pastry food baking conveyor line; Flat Wire Belt is usually used for the equipment of cooling, drying, bread production, washing, sorting and products processing, etc. In a word, according to the use environment and clientsspecial requirements, we can be able to give them different type of conveyor belt.
